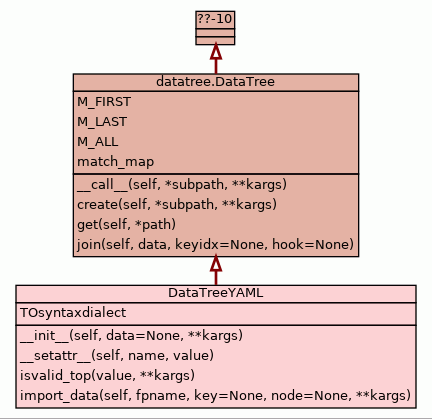

Class DataTreeYAML

Args:

data:

A YAML compliant in-memory data tree:

yaml-value := (
      object | array
    | number
    | string
    | false  | true
    | null
)

The equivalent Python types are - based on JSON-RFC7159 as canonical in-memory data:

RFC-7159-type-for-json := (
      dict | list            # see: object, array
    | int  | float           # see: number
    | str                    # see: unicode / for Python: ISSTR = (str(3) | unicode(2))
    | None | True  | False   # see: null, true, false
)

The initial data defines the permitted type of the first item within the subpath of the spanned data tree.

Thus atomic data types define a single node data tree only - new in RFC-7159.

Returns:

None / initialized object

Raises:

YapyDataDataTreeError

pass-through

Decorators:

Overrides: datatree.DataTree.__init__

Validates types of own data attributes.

Args:

name:

Name of the attribute. Following are reserved and treated special:

• type: str - 'data' The value is treated as the replacement of the internal data attribute. Replaces or creates the complete data of teh current instance.

value:

The value of the attribute. This by default superposes present values by replacement. Non-present are created.

Returns:

Raises:

YapyDataDataTreeError

Decorators:

Decorators:

Overrides: datatree.DataTree.isvalid_top

Reads a YAML file. This is a simple basic method for the application on the lower layers of the software stack. It is designed for minimal dependencies. The used library is the PyYaml package.

Args:

fpname:

File path name of the YAML file.

fpname := <yaml-file-path-name>
yaml-file-path-name := (
      <file-path-name>           # with extension
    | <file-path-name> '.yaml'   # without extension, for multiple syntaxes
)

key:

The key for the insertion point:

node[key] = <file-data>

default := None - replace self.data,

The caller is responsible for the containment of the provided node within the data structure represented by this object. No checks are performed.

node:

The node for the insertion of the read data.:

default := <top>

Returns:

Reference to read data structure.

Raises:

YapyDataConfigError

pass-through

Decorators:

Overrides: datatree.DataTree.import_data

Readout the value of a node, or an attribute. The name binding of the path is provided as a tuple of path items.

Args:

subpath:

The list of keys constituting a branch of a data tree. The subpath is treated as a branch of one of the nodes of a provided searchpath - which is by default the top node. The supported values are:

subpath := <list-of-node-ids>
<list-of-node-ids> := <node-id> [',' <list-of-node-ids>]
node-id := (
      str            # string:  dict
    | int            # integer: lists, tuple, dict
)

The value of the node within data:

nodeid := (
      <single-nodeid>
    | <list-of-nodeids>
    | <tuple-of-nodeids>
)
single-nodeid := <nodeid>
list-of-nodeids := '[' <nodeidlists> ']'
tuple-of-nodeids := '(' <nodeidlists> ')'
nodeidlists := <nodeid> [',' <nodeidlists>]
nodeid := (
      ItemKey
    | ListIndex
)
ItemKey := "valid dict-key"
ListIndex := "valid list-index"

The derived syntax classes may impose specific constraints. Thus it is recommended to use integers and strings only for maximum compatibility, and the ease of using mixed syntaxes:

ItemKey :=    str  # string:  dict
ListIndex :=  int  # integer: lists, tuple, dict

kargs:

searchpath:

Optional search path for the match of the provided address subpath. The provided subpath is applied to each node of the searchpath in accordance to the direction option. This provides the search and enumeration of side branches:

searchpath := <path-item-list>

path-item-list := <path-item> [, <path-item-list>]
path-item := (
      str  # item name
    | int  # item index
)

default := <top-node>

The search path entries has to be actually present by default. These could be either created by loading a complete tree structure, or by using the Capabilities.create() member. See also parameter 'strict'.

direction:

The search direction of the subpath within the searchpath. In case of multiple superpositioned attributes the first traversed match.

The provided values are:

direction := (
      up   | 0  | False # search from right-to-left
    | down | 1  | True  # search from left-to-right
)

default:= up

match:

Sets the match criteria for the search operation. Interferes with direction:

match := (
      M_FIRST | 'first'   # use first matching node
    | M_LAST  | 'last'    # use last matching node
    | M_ALL   | 'all'     # use all - iterate all matches
)

default := M_FIRST

partial:

Enables the return of partial sub paths in case the requested path is not completely present.

partial := (
      True   # when not completely present, the longest
             # existing part is returned, the completeness
             # is provided by the result attribute <partial>
    | False  # when not completely present an exception
             # is raised
)

strict:

Controls the required consistency. This comprises:

1. the presence of the search path entries

2. the presence of the requested subpath within the set of search paths

pysyn:

Activates full Python syntax. This in particular enables all container types of intermediate nodes for arbitrary paths. Includes tuple, set, frozenset, etc.

pysyn := (
      True   # allows all python types as container nodes
    | False  # allows list and dict only as container nodes
)

default := False

Returns:

In case of a match returns the tuple:

return := (<attr-value-path>, <attr-value>, <partial>)

attr-value-path := (
      "the list of keys of the top-down path"
    | "empty list when no item exists"        # see <complete>
)
attr-value := "value of the targeted node/attribute"
partial := (
      False   # the complete requested path
    | True    # the actually present part of the path
)

Else raises YapyDataDataTreeOidError.

Raises:

YapyDataDataTreeOidError

pass-through

Decorators:

Creates a subpath to a given node, default is from top. Reuses existing nodes, starts the creation at the first point of branch-out from the exiting tree.

In general no padding of pre-required entries is done. This e.g. requires in case of a list the start with the index 0, while in case of the dict arbitrary keys could be assigned.

Args:

subpath:

The list of keys constituting a branch of a data tree. The subpath is treated as a branch of one of the nodes of a provided searchpath - which is by default the top node. The supported values are:

subpath := <list-of-node-ids>
<list-of-node-ids> := <node-id> [',' <list-of-node-ids>]
node-id := (
      <present-intermediate-node>
    | <new-node>
)
present-intermediate-node := (
      str             # string:  dict
    | int             # integer: lists, tuple, dict
    | True | False    # logic:   dict
    | None            # null:    dict
)
new-node := (
      str             # string:  dict
    | int             # integer: list
    | True | False    # logic:   dict
    | None            # null:    dict
)

Some Python data types are immutable, which could be subscripted read-only, e.g. strings. While others such as sets are iterable, but not subscriptable at all. Refer to the manual for a detailed list.

kargs:

hook:

Optional node as parent of the insertion point for the new sub path. The node must exist and be part of the targeted data structure. No additional checks are done:

hook := <memory-node>
memory-node := "node address"

default := <top-node>

The hook node could either be a border node of the existing tree, or any arbitrary node with a partial of complete part of the requested subpath. Existing nodes are reused.

strict:

If True requires all present nodes of the subpath to of the appropriate type, missing are created. When False present nodes of inappropriate type are simply replaced.

strict := (
      True   # nodes must be present
    | False  # missing are created
)
default := False

Nodes of type None are always treated as non-present placeholder, thus replaced in any case.

value:

Value of the created final node:

value := <value-of-node>

value-of-node := <valid-json-node-type>
valid-json-node-type := (
                      int | float
                    | str                  # unicode
                    | dict | list
                    | None | True | False  # equivalent: null|true|false
                    )

default := None

Returns:

In case of success the in-memory nodes of the sub path:

return := (<attr-value-path>)

attr-value-path-tuple := (
      <in-memory nodes>
    | <non-subscriptable-node>
)
in-memory nodes := (
    "the list of in-memory nodes with support of subscription"
)
non-subscriptable-node := "any valid type"

else raises YapyDataDataTreeOidError.

The last node contains in case of an atomic type the value of the node, while the intermediate nodes represent the indexed containers.

Raises:

YapyDataDataTreeOidError

pass-through

Decorators:

Gets the value of the path within the member 'data':

self.data[key]
self.data[key0][key1][key2]...

Args:

key:

The value of the node within data:

key := (
      <single-key>
    | <list-of-keys>
    | <tuple-of-keys>
)
single-key := <key>
list-of-keys := '[' <keylists> ']'
tuple-of-keys := '(' <keylist> ')'
keylist := <key> [',' <keylist>]
key := (
      ItemKey
    | ListIndex
)
ItemKey := "valid dict-key"
ListIndex := "valid list-index"

Returns:

The value of the addressed node/value.

Raises:

pass-through

Decorators:

Superposes a JSON structure onto an existing. This is a fixed mode and strategy special case of the generic method superpose(). Implemented by recursion. The reduced parameter set provides better performance on large trees while the graph parameters still could be efficiently set by default values.

The superpositioning is supported by multiple strategies defined by the parameter mode. The provided algorithm of the strategy is join, where the input data is processed on the exisiting tree by modification and creation as required.

• branches are resolved from top to the leafs

• missing sub-branches are created

• missing leafs are created

• existing leafs are replaced

This implements a last-wins strategy, thus in particular supports incremental load of configurations by raising priority.

Args:

data:

Top node of the data tree to be superposed.

keyidx:

Key or index to be used at the insertion node. If not given the insertion node is:

into dict: update by the new node
into list: append the new node

default := None

hook:

The insertion node for the new data:

when  not given: use top.

default := None

Returns:

Returns the merged data tree, raises an exception in case of failure.

Raises:

YapyDataDataTreeError

pass-through

Decorators:

match_map

Value:

{M_FIRST: 1, M_LAST: 2, M_ALL: 3, 'first': 1, 'last': 2, 'all': 3,}
